18%OFF

High Torque NEMA 8 stepper motor 30mm 18mN.m and 38mm 22mN.m

stars, based on 0reviews

￡9.40￡11.45 unit

Model No.

Contact Us

Product Tag:

nema8 stepper motor20 stepper motorNEMA 8 stepper motor

Description

SPECIFICATIONS:

Model No.	8HY0001-20	8HY0001-10	8hHY1002-15
Step Angle	1.8°	1.8°	1.8°
No. of Phase	2	2	2
Motor Shaft Length	20mm	10mm	15mm
Holding Torque	18mN.m	18mN.m	20mN.m
Rated Current	0.6A	0.6A	0.6A

DIMENSION :

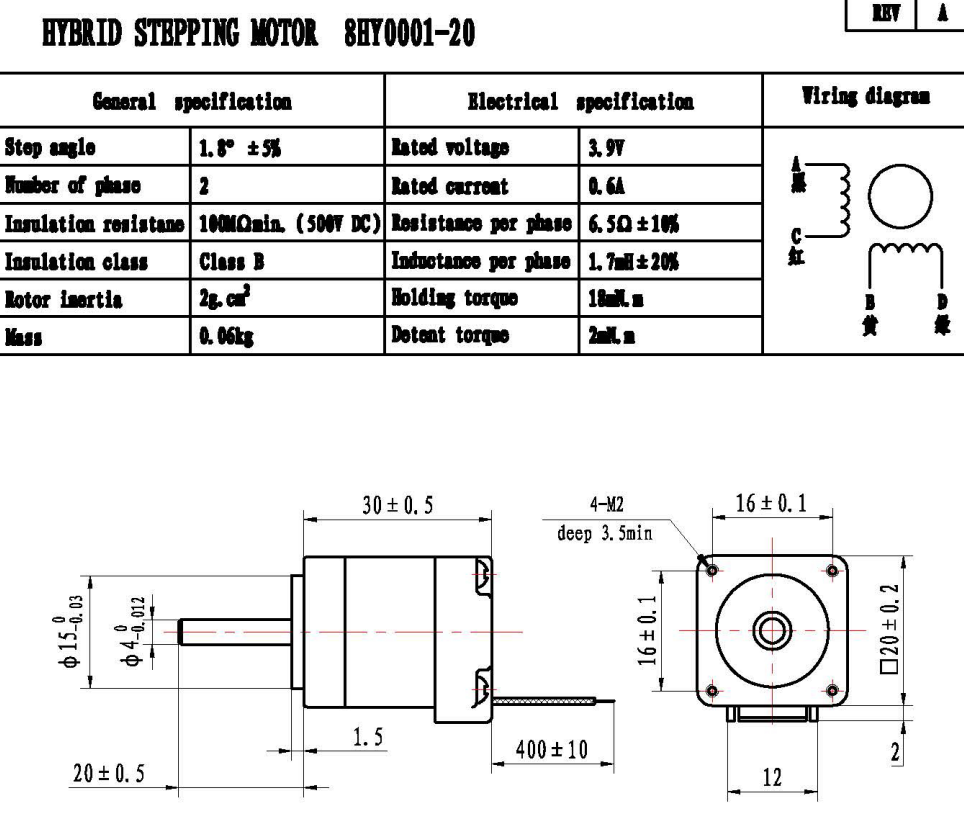

NEMA 8 30mm stepper motor datasheet:

NEMA 8 38mm length stepper motor datasheet:
