31%OFF

3D Printer NEMA17 Stepper Motor

stars, based on 0reviews

$5.90$8.50 unit

Model No.:

Contact Us

Product Tag:

0.9 degree stepper motor 0.9° stepper motorNEMA17 stepper motor

Description

Model No.	42HM34-1334A	42HS34-1334A	42HM40-1684A	42HS40-1704A	48HM48-1684A	42HS48-1684A
Step Angle (°)	0.9	1.8	0.9	1.8	0.9	1.8
Phase	2	2	2	2	2	2
Rated Current (A)	1.33	1.33	1.68	1.7	1.68	1.68
holding Torque (Nm)	0.22	0.22	0.4	0.4	0.5	0.5
Weight (g)	220	220	300	300	400	400

DIMENSION:

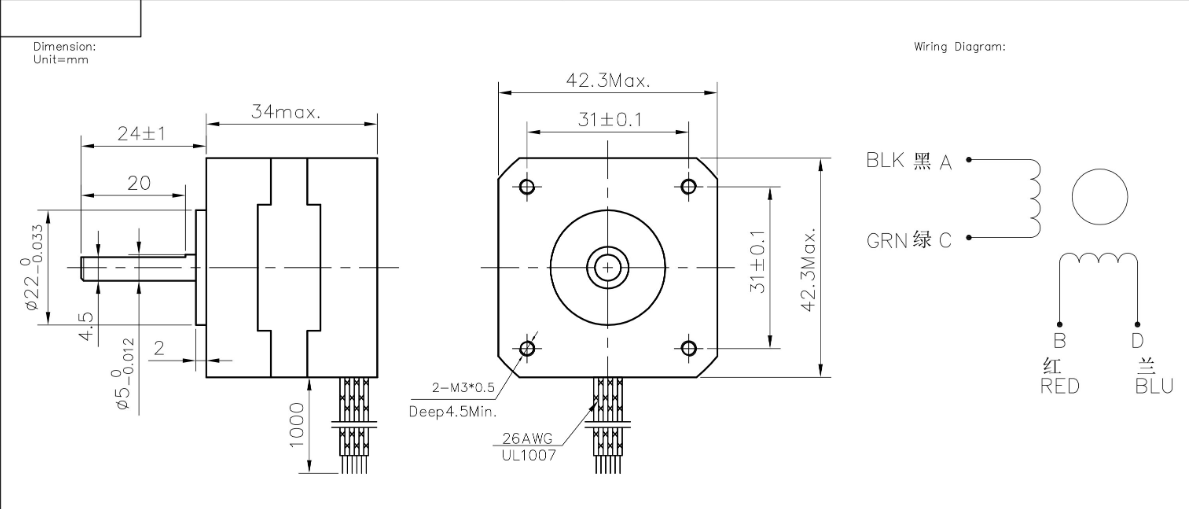

NEMA17 34mm length stepper motor :

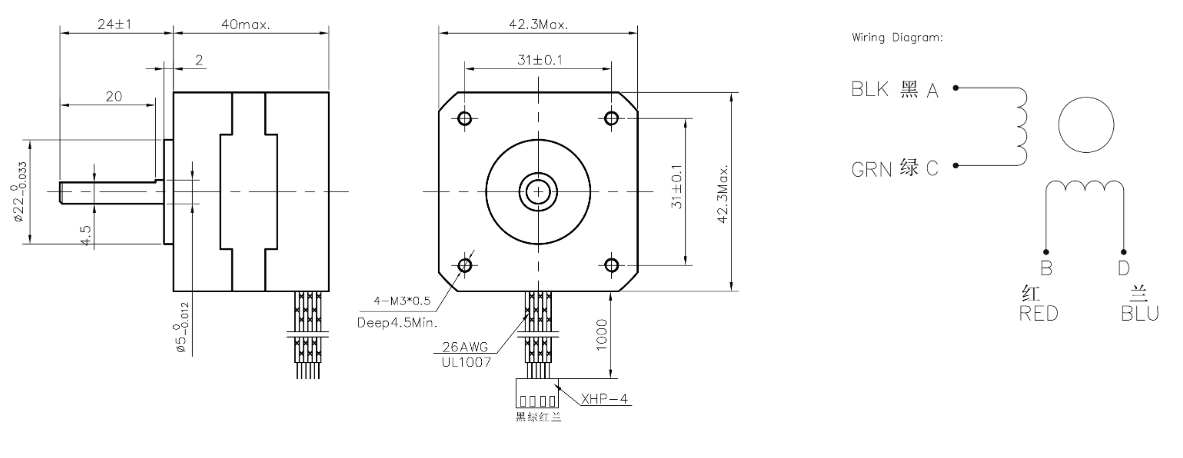

NEMA17 40mm length stepper motor:

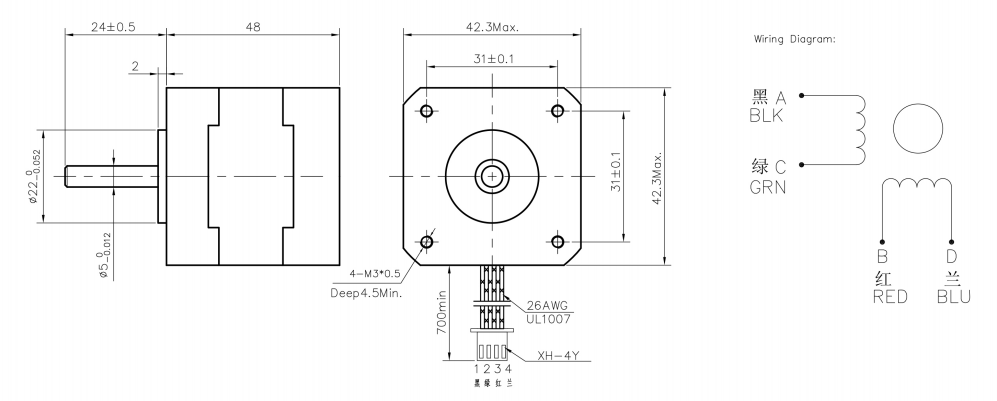

NEMA17 48mm length stepper motor:
